Asus ROG MAXIMUS XII FORMULA (Wi-Fi 6) Z490 Chipset DDR4 10th Gen Intel LGA1200 Socket Mainboard

Asus ROG MAXIMUS XII FORMULA (Wi-Fi 6) Z490 Chipset DDR4 10th Gen Intel LGA1200 Socket Mainboard

৳ 48,500.00

Let’s check the overview

Model: ASUS ROG MAXIMUS XII FORMULA Z490
LGA 1200 socket for 10th-gen Intel Core desktop processors
Robust power delivery
Cooling & Performance
Intel Wi-Fi 6, 10 Gb Ethernet

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। চলুন সাপোর্ট এ যোগাযোগ করি: Live || 01723-570189(10AM - 8PM)

SKU: #SS2534C Categories: Asus Intel, Motherboard Tag: Asus ROG MAXIMUS XII FORMULA (Wi-Fi 6) Z490 Chipset DDR4 10th Gen Intel LGA1200 Socket Mainboard

Specification & Description

asus-rog-maximus-xii-formula-z490-motherboard

About This Product

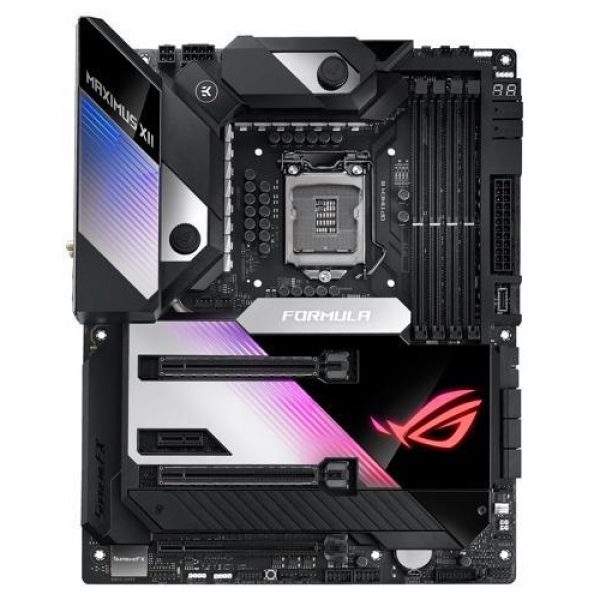

asus-rog-maximus-xii-formula-z490-motherboard : Bring ultimate performance to your gaming experience with ASUS. Designed for gamers, enthusiasts, professionals, and content creators who want to pack a ton of power into their desktop computer systems, this ATX motherboard is powered by the Intel Z490 chipset and supports 10th generation Intel processors with the LGA 1200 socket. It takes full advantage of the PCIe 3.0 data bandwidth to deliver high performance for tasks such as video editing, gaming, and 3D modeling. The motherboard also features an advanced cooling design with extensive support for fans and liquid cooling systems.

Up to 128GB of dual-channel DDR4 RAM, reaching 4800 MHz when overclocked, can be installed across four memory slots. Additionally, up to six Intel Optane-enhanced SATA III storage drives can be installed alongside three M.2 SSDs, which can be put into RAID 0, 1, 5, or 10 configuration. Intel Rapid Storage Technology helps to boost performance and responsiveness of connected storage drives. Dedicated graphics cards can be installed into the PCIe 3.0 x16 slots with support for 2-Way NVIDIA SLI and 3-Way AMD CrossFireX configurations to maximize frame rates, connect 4K monitors, and for faster video rendering times. An additional PCIe 3.0 x1 slot is available alongside a Thunderbolt 3 header for compatible expansion cards.

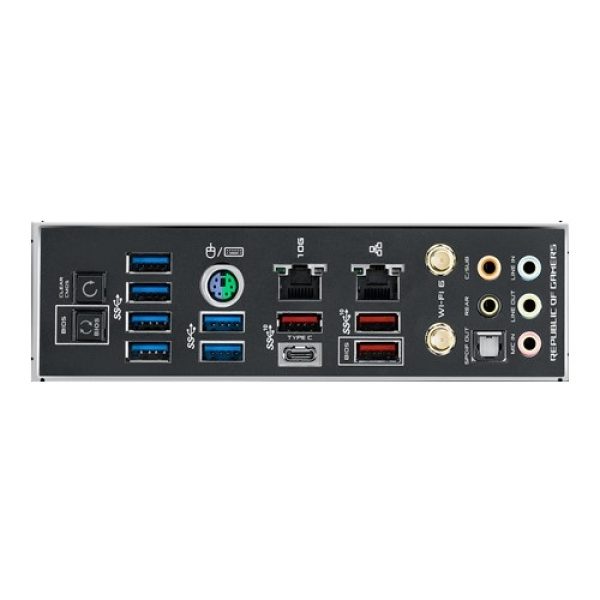

The USB 3.2 Gen 2 Type-A and Type-C ports allow you to transfer data from compatible peripherals at up to 10 Gb/s. Other features include fast network connections with both a 2.5 Gigabit Ethernet port and a 10 Gigabit Ethernet port quickly transfer data from network attached storage drives and other compatible devices. They operate alongside the built-in 802.11ax Wi-Fi that can reach speeds of up to 2.4 Gb/s over compatible wireless networks.

The ROG Maximus XII Formula also delivers deep and immersive 7.1-channel surround sound through the SupremeFX S1220 audio codec and ESS ES9023P DAC. You can customize your computing experience using the addressable RGB headers to connect light strips, which can be synced with other Aura Sync-compatible peripherals such as mice and keyboards. There is also a 2″ LiveDash OLED display built onto the motherboard, which can be programmed to show hardware statistics or customized graphics. Windows 10 64-bit is required to take advantage of all the motherboard’s features.

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z490
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Expansion Slots
PCI	Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
M.2 Socket	1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DDR4 DIMM
Supported Memory	4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem III
Maximum Mamory	128 GB
Graphics
Graphics	Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology
Connector & Ports
USB (s)	Intel I225-V 2.5Gb Ethernet Marvell AQtion AQC107 10Gb Ethernet ASUS LANGuard
LAN Port (s)	Intel I219-V 1Gb Ethernet
Supported Storage	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 – Impedance sense for front and rear headphone outputs – Supports: Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/192kHz playback Audio Feature : – SupremeFX Shielding Technology – Gold-plated jacks – Optical S/PDIF out port(s) at back panel – Premium Japanese audio capacitors – Audio Cover
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 2 x W_OUT header 3 x W_FLOW header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 3 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x ReTry button 1 x System panel connector 1 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x Start button 1 x FlexKey button
Warranty Information
Manufacturing Warranty	03 Years
Others
Special Features	Wireless Data Network: Intel Wi-Fi 6 AX201 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interfaceROG Exclusive Software – Mem Tweakit – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – BullGuard Internet Security (1-year full version)ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – 5-way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app – EZ update AI Charger WinRARUEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKeyROG Extreme OC kit – FlexKey button – ReTry button – Start buttonASUS Q-Design – ASUS Q-Code – ASUS Q-Connector – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-SlotASUS Thermal Solution – Aluminum M.2 heatsink – CrossChill EK III – Steel backplateASUS EZ DIY – BIOS Flashback™ button – Clear CMOS button – Procool II – Pre- mounted I/O shield – SafeSlot AURA Sync – ROG Aura sync Armor – Standard RGB header(s) – Addressable Gen 2 RGB header(s)
