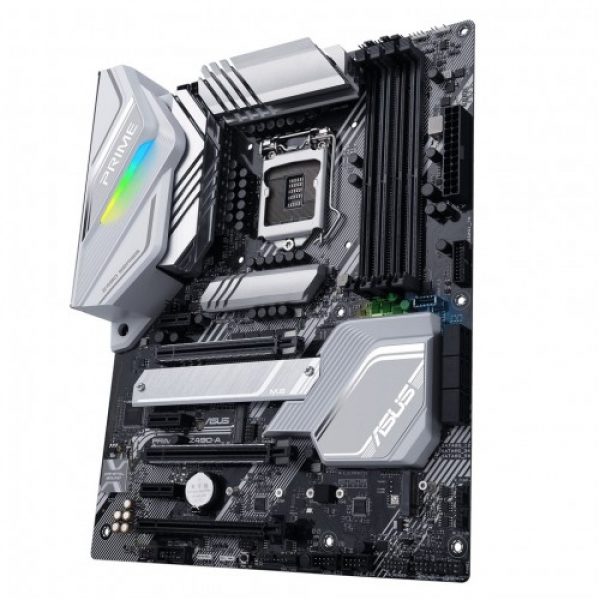

Asus Prime Z490-A Intel 10th Gen ATX Motherboard

৳ 0.00

Let’s check the overview

Model: Asus Prime Z490-A
Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
Fan Xpert 4
Enhanced power solution
Ready for Ultrafast Connectivity

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। চলুন সাপোর্ট এ যোগাযোগ করি: Live || 01840086768(10AM - 8PM)

SKU: #SS2540C Categories: Asus Intel, Motherboard Tag: Asus PRIME Z490-A DDR4 10th Gen Intel LGA1200 Socket Mainboard

Specification & Description

Asus Prime Z490-A Motherboard

About This Product

Asus Prime Z490-A Motherboard : Powered exclusively by 10th Generation Intel Core, Pentium Gold, and Celeron processors, the Prime Z490-A LGA 1200 ATX Motherboard from ASUS boasts a robust power design, comprehensive cooling solutions, and intelligent tuning options. It provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This motherboard will fit in ATX sized cases, supports the LGA 1200 socket, the Intel Z490 chipset, and is compatible with Windows 10 (64-bit).

The ATX form factor of the Prime Z490-A can support up to 128GB of DDR4 RAM over four dual-channel slots, or 32GB per slot at speeds of 4600 (OC), 4500 (OC), 4400 (OC), 4266 (OC) 4133 (OC), 4000 (OC), 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666, 2400, and 2133 MHz non-ECC unbuffered memory. For storage, there are six SATA III 6 Gb/s ports and two M.2 Key M sockets, both of which support type 2242, 2260, 2280, and 22110 SSDs. One slot slot supports PCIe 3.0 x4 and SATA SSDs, while the other supports PCIe 3.0 x2 (x4 mode). The Prime Z490-A supports Intel Optane Memory and allows its storage to be configured as RAID 0, 1, 5, and 10.

There is also one USB 3.2 Gen 2 Type-C port (rear panel), three USB 3.2 Gen 2 Type-A ports (rear panel), two USB 3.2 Gen 1 Type-A ports (rear panel), two USB 2.0 Type-A ports (rear panel), and more internal USB headers that support USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and USB 2.0. For those looking to expand their system using PCIe, there is one PCIe 3.0 x16 slot (x16 or x8/x8), one PCIe 3.0 x16 slot (max at x4 mode), and three PCIe 3.0 x1 slots. Network connectivity is achieved using an Intel I225-V 2.5Gb Ethernet port, and there is an empty M.2 Key E slot for a Wi-Fi module.

For delivering sharp, clear graphics, this motherboard supports a maximum resolution of 4096 x 2304 at 60 Hz using DisplayPort 1.4 and HDMI 1.4b outputs. For users looking to take advantage of multiple GPUs, the Prime Z490-A supports AMD 3-Way CrossFireX and 2-Way NVIDIA SLI technologies.

Using the Realtek ALC S1200A 8-channel HD audio codec, the Prime Z490-A can support audio with higher fidelity than standard controllers. Audio can also be output using the integrated five 3.5mm audio outputs or optical S/PDIF output. This motherboard is also equipped with features such as AURA RGB headers, DIGI+ VRM, DRAM Overcurrent Protection, ESD Guards, LANGuard, Overvoltage Protection, a Stainless Steel Back I/O, an aluminum heatsink, and more. Protection is provided by a limited 3-year warranty.

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z490
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	Intel 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel Z490 Chipset 1 x PCIe 3.0 x16 (max at x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM
Supported Memory	4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory OptiMem II
Maximum Mamory	128GB
Graphics
Graphics	Integrated Graphics Processor- Intel UHD Graphics support 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 1.4b
Display Port (s)	1 x DisplayPort 1.4
USB (s)	Rear USB Port ( Total 8 ) 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 front panel connector port(s) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready
Audio	Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/192kHz playback * Audio Feature : – Optical S/PDIF in port(s) at back panel – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors – Audio Cover – Unique de-pop circuit – Power pre-regulator: Reduces power input noise to ensure consistent performance
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x M.2 Fan Header
Warranty Information
Manufacturing Warranty	03 Years
