Gigabyte Z490 VISION G DDR4 10th Gen Intel LGA1200 Socket Mainboard

Gigabyte Z490 VISION D (Wi-Fi 6) DDR4 10th Gen Intel LGA1200 Socket Mainboard

৳ 32,100.00

Let’s check the overview

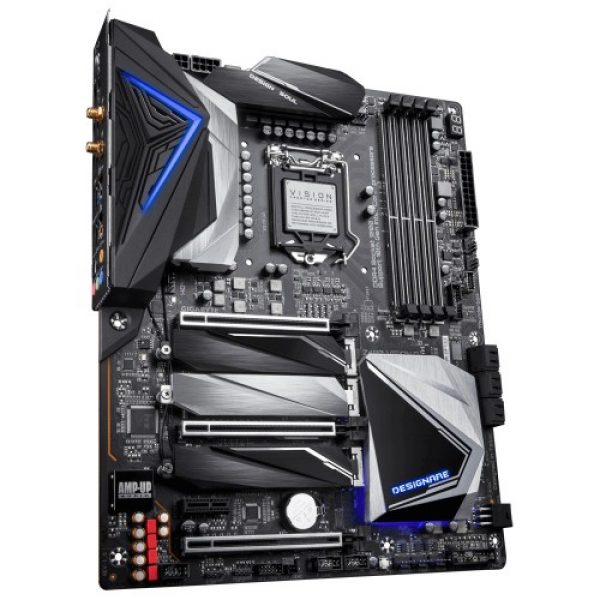

Model: GIGABYTE Z490 VISION D
Chipset: Intel Z490 Express
Intel Socket LGA1200 for 10th Gen Processors
4 x DIMM, Max. 128GB DDR4
CrossFire and SLI Supported

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। চলুন সাপোর্ট এ যোগাযোগ করি: Live || 01723-570189(10AM - 8PM)

SKU: #SS2490C Categories: Gigabyte Intel, Motherboard Tag: Gigabyte Z490 VISION D (Wi-Fi 6) DDR4 10th Gen Intel LGA1200 Socket Mainboard

Specification & Description

gigabyte-z490-vision-d-wi-fi-mainboard

About This Product

gigabyte-z490-vision-d-wi-fi-mainboard : Model – Gigabyte Z490 VISION D, CPU Sockets – LGA1200, Chipset – Intel Z490 Express, Supported CPU – 10th Generation Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors, Generation – 10th, Memory Type – DDR4, Memory MHz Optane Memory Support – Yes, Graphic – Integrated Graphics, Multi-GPU Support – NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI, AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot – 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, Storage Interface – 6Gb/s, LAN Speed (Mbps) – 2.5Gbit/1Gbit/100Mbit & 1Gbit/100Mbit, Audio Chipset – Realtek ALC1220-VB, Audio Channel – 2/4/5.1/7.1-channel, WiFi – Yes,

WiFi Technology – Intel Wi-Fi 6 AX201, WIFI a/b/g/n/ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Bluetooth – Bluetooth 5.1, USB Port – 2 x USB 3.2 Gen 2 Type-C (Thunderbolt 3), 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0, VGA Port – No, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – AMI UEFI BIOS, BIOS Version – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire – No, CrossFire Support – Yes, Sli Support – Yes, RaidSupport – 0,1,5,10, Thunderbolt – 2 x Thunderbolt, TPM Port – Yes, COM Port – No, RGB Support – Yes, RGB Sync – RGB FUSION 2.0, RGB Connector – 2 x RGB LED strip headers, Form Factor – ATX, Supported

Operating System – Windows 10, Special Features – Intel Z490 Creators Motherboard with Direct 12 Phases Power Design, Direct Touch Heatpipe, Thunderbolt 3, Intel Wi-Fi 6 802.11ax, Intel 2.5GbE + GbE Dual LAN with cFosSpeed, Triple M.2 with Thermal Guards, Front & Rear USB 3.2 Gen 2 Type-C, RGB FUSION 2.0, Intel Optane Memory Ready, Direct 12 Phases Digital VRM Solution with DrMOS, Advanced Thermal Design with Direct Touch Heatpipe, Intel Thunderbolt 3 Onboard – The USB-C that Does it All, Onboard Intel Wi-Fi 6 802.11ax 2T2R & BT5 with 1 x front panel audio header, 1 x Trusted Platform Module header, 2 x temperature sensor headers, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 1 x DisplayPort In port, 2 x SMA antenna connectors (2T2R), 5 x audio jacks, I/O Controller: iTE I/O Controller Chip, Wireless Communication module: Intel Wi-Fi 6 AX201, BLUETOOTH 5.1, Warranty – 3 Year, Country of Origin – Taiwan, Made in/ Assemble – China

Specification

Basic Information
Supported CPU	Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Chipset	Intel Z490 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)
M.2 Socket	x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
Memory
Type	Dual channel memory architecture
Slots	4 x DDR4 DIMM
Supported Memory	Intel Core i9/i7 processors: Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory	128 GB
Graphics
Graphics	Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller: 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory	512MB
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

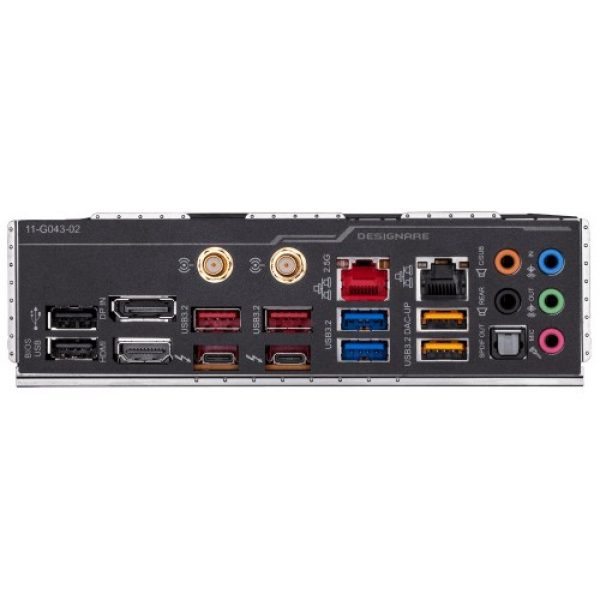

USB (s)	2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp Chipset+Intel Thunderbolt 3 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1) 1 x Intel GbE LAN chip (1 Gbit/100 Mbit) (LAN2) Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	Realtek ALC1220-VB codec Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x temperature sensor headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Warranty Information
Manufacturing Warranty	03 Years
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
