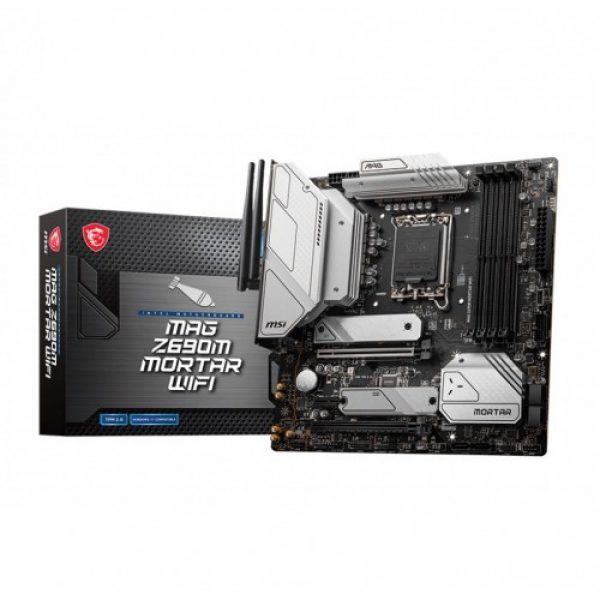

MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard

Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors

Processor socket LGA1700

Intel Z690 Chipset

Micro-ATX Form Factor

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Realtek ALC1200 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

2x PCIe x16 slots

PCI_E1 slot (From CPU)

Supports PCIe 4.0 x16

PCI_E3 slot (From Z690 Chipset)

Supports PCIe 3.0 x4

1x PCIe 3.0 x1 slot

DDR5

4 x DIMM

Supports 1R 4800 MHz (by JEDEC & POR)

Max. overclocking frequency:

1DPC 1R Max speed up to 6200+ MHz

1DPC 2R Max speed up to 5200+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Intel XMP 3.0 OC

Supports Dual Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

128GB

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Supports 2-Way AMD CrossFire Technology

1x HDMI 2.1

1x DisplayPort 1.4

Intel Z690 Chipset

1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel

1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector

2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

4x USB 2.0 ports on the back panel

USB Hub-GL3590

3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

4x USB 2.0 ports available through internal connectors

1x Realtek 8125BG 2.5Gbps LAN controller

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz

(160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2, FIPS, FISMA

4x SATA 6Gb/s ports (SATA5~8, from Z690 Chipset)

2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)

2x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports PCIe 4.0 x4

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (From Z690 Chipset)

Supports PCIe 4.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Supports Intel Optane Memory

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

1x Front panel audio connector

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C connector

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

2x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

1x Tuning Controller connector

1x TPM module connector

3 years
