MSI MPG X570 GAMING PLUS DDR4 AMD AM4 Socket Mainboard#SS5889C

Specification & Description

About This Product

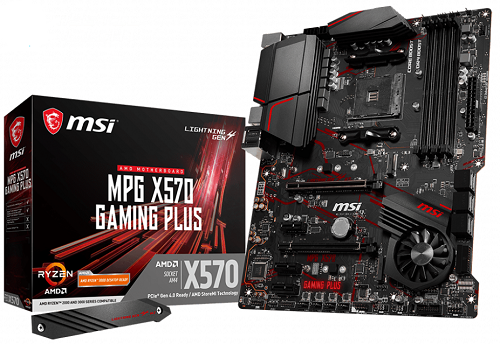

MSI MPG X570 GAMING PLUS

Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center



• Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 4400+(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2
• Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
• Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.

DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

STAY COOL AND SUSTAIN PERFORMANCE

Cooling is essential for a high performance PC to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.

LARGER HEATSINK FOR MORE COOLING

Heatsinks on top of the power delivery circuits help to dissipate excessive heat. Extended heatsinks have even more surface area for more thermal dissipation.

M.2 SHIELD FROZR

Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD throttling with thermal design that includes a heatsink that extends across the motherboard.

TROUBLESHOOTING FRIENDLY DESIGN

MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.

EASY BIOS RECOVERY WITH FLASH BIOS BUTTON

Run into trouble when updating your BIOS? Simply flash the old BIOS version back and continue gaming within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed!

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

IN-GAME ADVANTAGE

MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.

EXHILARATING AND INSPIRING

Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

LOYAL COMRADE

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.





Model – MSI MPG X570 GAMING PLUS, CPU Sockets – AM4, Chipset – AMD X570 Chipset, Supported CPU – AMD Ryzen 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics Processors, AMD Ryzen 2nd Generation Radeon Graphics Desktop Processors, Memory Type – DDR4, Memory MHz – 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866MHz, Memory Channel – Dual Channel, Memory Slot – 4, Memory Max. – 128GB, Optane Memory Support – No, Graphic – Onboard Graphics, Multi-GPU Support – 2-Way AMD CrossFire, PCI Express Slot – 1x PCIe 4.0/3.0 x16 slot, 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode), 3x PCIe 3.0 x1 slots, Storage Interface – 6Gb/s, M.2 Slot – 2 x M.2 slots (PCIe 4.0 x4 or PCIe 3.0 x4 and Supports 2242/ 2260/ 2280/ 22110 storage devices), (PCIe 3.0 x4 and SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices), LAN Chipset – Realtek 8111H Gigabit LAN, Audio Chipset – Realtek ALC1220, Audio Channel – 7.1-Channel, WiFi – No, Bluetooth – No, USB Port – 1 x USB 3.2 Gen 2 Type C, 1 x USB 3.2 Gen 2 Type A, 8 x USB 3.2 Gen 1 Type A, 6 x USB2.0, VGA Port – No, DVI Port – No, HDMI Port – 1, DisplayPort (DP) – No, IDE Port – No, SATA Port – 6 x SATA, DirectX Support – 12, FireWire – No, CrossFire Support – Yes, Sli Support – No, RaidSupport – 0, 1, 10, Thunderbolt – No, COM Port – No, RGB Support – Yes, RGB Sync – Mystic light, RGB Connector – 2 x 4-pin RGB LED connectors, Form Factor – ATX, Supported Operating System – Windows 10, Special Features – Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center, Lightning Fast Game experience, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2, Frozr Heatsink Design, Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers, Set Core Power Free, Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost, MYSTIC LIGHT, 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip, AUDIO BOOST 4, Others – 2 x M.2 slots, 1x 4-pin CPU fan connector, 1x 4-pin water-pump connector, 4x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x TPM module connector, 1x Serial port connector, 1x Clear CMOS jumper, 1x Chassis Intrusion connector, 2x 3-pin RAINBOW LED connectors, 4x EZ Debug LEDs, Audio Connectors, Flash BIOS Button, 9 mounting holes,
